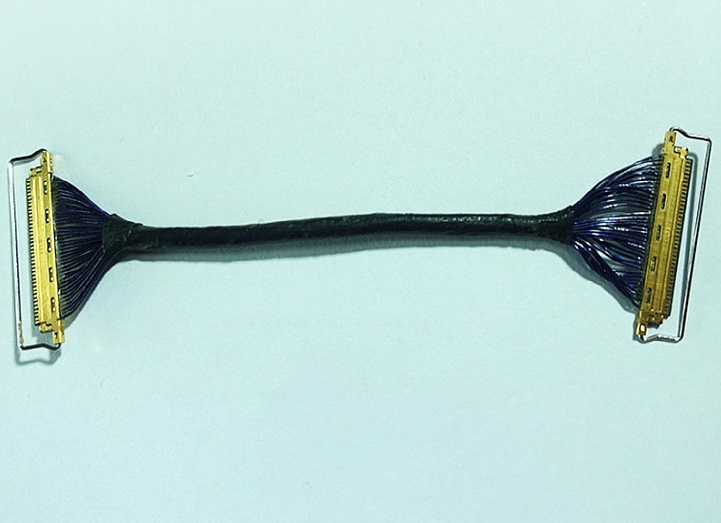

Can LVDS cable be used for video?
The short and definitive answer is yes: LVDS (Low Voltage Differential Signaling) cables are originally designed and widely deployed for digital video signal transmission, becoming one of the most mainstream video connection solutions for embedded, consumer electronic and industrial display devices worldwide. As a high-speed differential transmission standard, LVDS cable perfectly match the core transmission demands of digital video signals, with mature industrial applications and stable signal performance, proving their high adaptability for video delivery.
To understand why LVDS cables fit video transmission, it is necessary to analyze its core working mechanism. Unlike single-ended signal cables that transmit one-way voltage signals, LVDS cables adopt paired twisted wires to deliver two reversed differential signals simultaneously. The receiver calculates the voltage difference between two signals to restore complete data, which automatically eliminates external electromagnetic interference and common-mode noise. Meanwhile, LVDS only adopts 350mV low voltage swing for signal output, cutting down power consumption greatly while supporting gigabit-level high-frequency transmission. These traits solve two core pain points of video transmission: anti-interference capability for clear picture output and high bandwidth for uncompressed video data transmission.
LVDS cables have dominated mainstream internal video transmission scenarios for decades. In consumer electronics, they connect motherboard graphics chips to LCD screens in laptops, televisions and desktop monitors, transmitting native screen video signals without compression or frame loss. In industrial fields, LVDS cables link industrial cameras, machine vision sensors and human-machine touch screens to main control boards, delivering high-definition monitoring video in noisy factory environments. Besides, medical imaging equipment, drone display modules and automotive central control screens all rely on LVDS cables for real-time video transmission, thanks to its slim cable size, low heat generation and stable long-distance signal performance.
Compared with mainstream video cables like HDMI and DP, LVDS cables possess unique video transmission strengths. They have simpler internal structures and lower manufacturing costs, supporting customized wire counts and lengths to fit compact device interiors. Moreover, LVDS transmits uncompressed raw video pixel data, avoiding picture compression artifacts, color distortion and transmission delay that plague compressed video cables. It also works stably under high temperature and strong electromagnetic interference, which outperforms consumer-grade video cables in industrial and automotive video scenarios.
Nevertheless, LVDS cables have clear limitations for video use. Firstly, they are mostly designed for short-to-medium distance transmission, with signal attenuation and screen flicker occurring beyond 5 meters without signal amplifiers. Secondly, LVDS is a hardware electrical standard instead of a unified video protocol; it cannot be directly plugged into HDMI or external display interfaces without protocol converter chips. Thirdly, ordinary flat LVDS ribbon cables fail to support ultra-4K high-refresh-rate video, requiring shielded high-bandwidth customized cables for premium video output.
In conclusion, LVDS cables are professional, high-performance video transmission cables by design, not auxiliary data wires. They excel at raw digital video transmission for built-in displays and industrial visual systems, with irreplaceable advantages in stability, cost and anti-interference. Users only need to select matched impedance, shielded models and reasonable cable lengths to achieve flawless video output. Although not fit for long-distance external video connection, LVDS cables remain a core choice for embedded and industrial video transmission systems.
