how to custom magnetic charging cable?

Magnetic charging cables are widely used with smart wearables, small home appliances, industrial equipment, and digital accessories. They are primarily divided into two categories: universal smartphone magnetic cables and device-specific POGOPIN magnetic cables. Customization requires a complete implementation process covering six key stages: requirement confirmation, structural selection, material parameters, appearance and logo design, prototyping and mass production, and certification and quality inspection. Each step directly impacts product stability, cost, and service life. Below is a comprehensive overview of the entire customization process.

1. Precisely define the initial requirements and clearly identify the core usage scenarios.

The first step in customization is to determine the application scenario of the product, distinguish between consumer-level and industrial-level requirements, and determine the basic electrical standards. The magnetic cable for civilian mobile phones focuses on fast charging and portability, while small devices such as smartwatches, beauty devices, and juicing cups mostly adopt 2-7PIN short magnetic cables. Industrial detection instruments and outdoor equipment require high current, waterproof, and highly stable magnetic suction solutions.
Firstly, confirm the three core electrical parameters: rated voltage and current. For civilian mobile phones, the basic model is 5V2A, the fast charging model is 60W/100W, and the industrial high current model is 12V/24V. These are selected separately; the function distinction is either charging or charging + data transmission. The transmission requirements need to be planned with additional D+D - signal pins; the magnetic suction force, for wearable devices, is 150-300g, facilitating insertion and removal, while for vehicle-mounted and industrial equipment, it needs to be 1000-3000g to prevent detachment and shaking.
At the same time, determine the basic size of the cable: standard lengths of 0.3m, 0.5m, 1m, 1.5m, and 2m can be adjusted non-standardly. Short cables are mostly used for equipment base fittings, while long cables are suitable for desktop and vehicle scenarios; the angle of the magnetic suction head is divided into straight head 180° and curved head, and for small devices with limited space, the curved head injection molding structure is preferred to reduce space occupation.
II. Customization of Magnetic Connectors and PIN Pin Structure (Core Component)

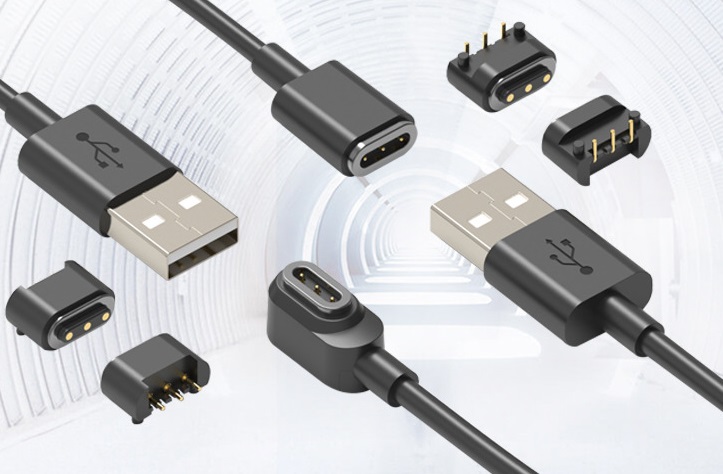

The magnetic head is composed of neodymium iron boron magnets, gold-plated POGOPIN pins, and a plastic casing. The number and arrangement of the pins are the key to customization and cannot be modified later. Before mold production, the equipment motherboard drawings must be checked.

1. Pin quantity definition: 2PIN only has positive and negative power supply, the cost is the lowest, suitable for simple charging small household appliances; 5PIN includes power supply, ground wire, data positive and negative, identification pins, supporting data transmission and fast charging identification; 7-12PIN is mostly used for high-end devices, adding signal, temperature measurement, grounding shielding contacts, industrial equipment can achieve up to 18PIN multi-signal transmission. Pin spacing can be customized as 2.54mm, 3mm, 4mm, 7.62mm, matching the reserved interface size of the equipment.
2. Magnetic contact process: The thickness of the top pin gold plating can be selected from 3μm to 10μm. The thicker the gold plating, the lower the contact resistance and stronger oxidation resistance. For medical and outdoor equipment, it is recommended to add thick gold plating. For regular consumer products, 5μm is sufficient to balance the cost. The magnetic male and female heads add concave and convex positioning grooves to prevent reverse insertion short circuit. In humid environments, a silicone sealing ring is added to achieve IP54 to IP68 waterproof level.
3. Magnet structure: The built-in shielding layer magnetic head can isolate the magnetic field, avoiding interference with mobile phone NFC and wireless charging functions. Smart devices with screens must choose the shielding type. Ordinary low-end cables without shielding are prone to cause screen flickering and touch control failure.
III. Customization of wire material, wire core and outer sheath appearance

The wire body directly affects the fast charging capability and durability. It is customized layer by layer from the inside out. The wire core uses multi-strand tin-plated pure copper. The fast charging wire has a thicker 22AWG/24AWG wire core to reduce heat generation and voltage drop under high voltage and large current conditions. The basic charging model 28AWG wire can reduce costs. The shielding structure includes single-layer aluminum foil, aluminum foil + woven double-layer shielding. Data transmission and industrial signals must be double-layer shielded to avoid electromagnetic interference and disconnection.
The outer layer sheath can be selected from four mainstream materials as needed: PVC has the highest cost-performance ratio and is suitable for low-price batch products; TPE is soft and resistant to bending, with a delicate feel; TPU is wear-resistant and resistant to high and low temperatures, and is the preferred choice for vehicles and outdoor use; Silicone is skin-friendly, odorless, and suitable for beauty devices and baby equipment. The wire shape is divided into round wire, flat ribbon wire, and nylon woven wire. Woven wire has an elegant appearance, is resistant to stretching and not easy to tangle, and is mostly used in brand retail models; Flat wire is easier to store and is suitable for charging battery accessories.
The appearance color can be customized for all specifications. Black and white are the basic colors and are free of charge. Red, blue, green, and pastel colors require a small color adjustment fee. Magnetic snap covers are available in ABS ordinary plastic and aluminum alloy metal covers. The metal cover supports laser engraving of the LOGO, providing a stronger texture and higher premium space.

IV. Secondary customization of brand LOGO, packaging and appearance

Brand differentiation focuses on injection molding, printing and packaging, and is divided into two modes: semi-customized and fully customized. The semi-customized model uses the factory's existing common mold magnetic heads, only printing the brand logo on the body and USB shell with silk screen / laser engraving. The minimum order quantity is low, and samples can be produced within 10 days. The fully customized model uses a new magnetic head mold, allowing for customization of the shell curvature, size and logo. It is suitable for long-term own-brand products and has a higher minimum order quantity.
The packaging scheme is selected based on the sales channel: for offline supermarkets, choose vacuum-formed card paper hanging display; for e-commerce retail, choose simple white boxes and color-printed paper boxes; for gift matching and high-end equipment customization, choose gold-embossed gift boxes. The packaging can print product parameters, brand slogans, safety warning statements, and QR codes, model numbers and certification marks. All packaging can be printed with brand visual unified elements.
V. Sample Production, Mass Production Process and Cycle Control

The complete customized magnetic connection cable process is divided into demand alignment → proposal of solutions → mold creation / prototype production → sample testing → confirmation for mass production. Using the existing public mold magnetic suction heads, the sample cycle is 7-10 days; for the completely new mold customization of the magnetic suction structure, the mold cycle is 15-25 days, and the mold cost varies depending on the complexity of the PIN pins.
During the sample stage, all items of tests must be completed: insertion and removal life test (standard 20,000 times, high-end products 50,000 times), high and low temperature aging, continuous power load test, waterproof and dustproof test. After confirming no contact failure, overheating, or magnetic suction detachment issues, mass production can be carried out. In the mass production stage, the factory conducts full inspections for conduction, appearance, and adhesion force to ensure batch consistency. For regular orders, the delivery time is 10-25 days.
VI. Safety Standards Certification and Key Points for Customized Pit Avoidance

Safety certification and key points for custom magnetic charging cables: For export and online sales, magnetic cables must be planned for certification in advance. For domestic sales, ROHS environmental certification is required; for export to the EU, CE certification is added; for the US, FCC certification is needed. For Apple device magnetic charging cables, the Lightning magnetic head needs official MFi certification. For Type-C fast charging cables, USB-IF certification is recommended to avoid platform removal and customs seizure.
Common misconceptions in customization: Focusing only on strong magnetic attraction while ignoring the insertion and removal feel; excessive magnetic force can easily damage the device interface; blindly adding more pins increases costs; if there is no data requirement, no additional signal contacts are needed; long-term use of low-cost gold-plated pins can lead to oxidation and power failure; long-term production of products cannot excessively compress the contact process, resulting in increased cost; for industrial and outdoor equipment, waterproof sealing is omitted, leading to water ingress and short circuit faults.
In summary, custom magnetic charging cable production is not a simple matter of choosing length and color; it is a systematic solution that combines electrical, structural, appearance, and certification aspects. For small batch trial orders, choosing public templates and semi-customization can reduce risks. For self-owned brands with long-term production, it is recommended to fully open mold customization for the exclusive magnetic structure to balance performance, appearance, and cost, and to adapt to the corresponding terminal equipment to form a differentiated competitive advantage.
